Suspension

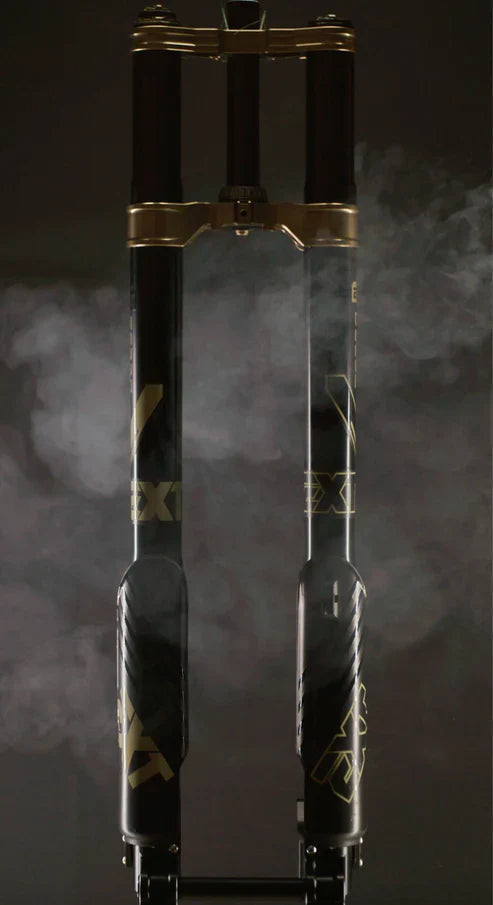

EXT Ferro E-MX Fork - Surron, Talaria, E-Ride Pro
$1,895.00 $2,100.00
Tax and shipping calculated at checkout.
The EXT Ferro E-MX — a true dual crown inverted MX fork engineered for e-moto, with race-grade damping and air spring technology.
Features
- Robust dual crown inverted MX design (USD)
- 36mm hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
- HS3 twin positive air system + 1 large negative self-balancing air chamber for optimum support through all the travel
- High-flow 3-way cartridge damper with independent high & low speed compression plus rebound adjustment
- External pressure air release system (one-way valves) on both legs
- Twin hexagonal floating axle, boost compatible 20mm
- Air spring and cartridge radial guide system with bespoke aeronautical seals — minimizes friction on side loads
- Large piston design for best damping control, separate IFP/coil energized compression valve — no cavitation, low hysteresis
- Self-bleeding hydraulic cartridge
- CGB Continuously Guided Bushing system with super-long static overlap for maximum guidance and torsional rigidity
- 205mm travel, 44mm offset
- 200mm post mount brake
- Weight: 4000g
- Compatible with stock fender design
- Boost hub spacing for flexibility with aftermarket wheel sets
Fitment
- Surron LBX/S — yes w/ boost rotor spacer (all model years)
- Talaria MX3/MX4 and XXX — yes w/ boost rotor spacer (drop crown recommended for MX versions, flat for XXX)
- Talaria MX5 — no (MX5 version available soon)
- E-Ride Pro S/SS/2.0 — yes w/ boost rotor spacer
- E-Ride Pro 3.0 — yes, with the EXT brake adaptor (also fits the SR model but not covered by warranty)
- Ventus One/One+ — yes w/ boost rotor spacer
- 79Bike — yes w/ boost rotor spacer
- Rawrr Mantis & Mantis X — yes w/ boost rotor spacer
- Zero XB — yes w/ boost rotor spacer
- ReRode R1 & Ewatt 2.0 — yes w/ boost rotor spacer
- Other brands — please email us for inquiries
Note: If running a stock wheel or any wheel not designed for BOOST hubs, you'll need a boost rotor adaptor (Warp 9 boost hub adaptor). For Sur-Ron: if you're not on the most current model, a head tube reinforcement clamp is recommended — standard equipment on current model year bikes, available for purchase on request.
Installation
EXT Ferro fork setup and installation (guide by EXT)
Watch: How to Install an EXT Ferro Fork on your Surron or Talaria (guide by Charged Cycle Works)
